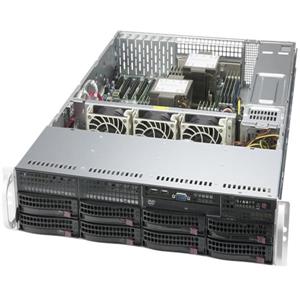

Supermicro美超微 SYS-620P-TR 2U機架式伺服器

SYS-620P-TR 2U機架式伺服器

品牌：Supermicro
原廠型號： SYS-620P-TR

供貨狀態：

含稅價

產品代號：J0053609
建議售價：NT$元(含)
網路價：NT$元(含)
捷元經銷商會員登入即享優惠價！立即登入
最小訂購量： 1
數量：		看目前庫存北倉: 中倉: 南倉:

分享

商品介紹

商品規格

優惠選購

商品保固

型錄下載

相關商品

相關優惠

狀態說明

roduct SKUs

SYS-620P-TR	SuperServer SYS-620P-TR (Black)


Motherboard

Super X12DPi-N6


Processor

CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W
Cores	Up to 36C/72T; Up to 60MB Cache


System Memory

Memory	Memory Capacity: 16 DIMM slots Up to 4TB: PMem and DRAM Memory Type: 3200MHz ECC LRDIMM/RDIMM DDR4 Intel® Optane™ persistent memory 200 series


On-Board Devices

Chipset	Intel® C621A
Network Connectivity	2x 1GbE port(s)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support


Input / Output

LAN	1 decicated IPMI LAN port
USB	2 USB 2.0 port(s) (2 front) 4 USB 3.0 port(s) (4 rear)
Video	1 VGA port(s)
Serial Port	2 COM Port(s) (1 front; 1 rear)
DOM	2 SuperDOM (Disk on Module) port


System BIOS

BIOS Type	AMI 32MB SPI Flash EEPROM


Management

Software	Supermicro Out of Band (OOB) License (included in the unit) IPMI2.0 Redfish API SSM Intel® Node Manager SPM KVM with dedicated LAN SUM NMI
Power Configurations	ACPI/APM Power Management


PC Health Monitoring

CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Chassis

Form Factor	2U Rackmount
Model	CSE-825BTS-R1K23LPP1


Dimensions and Weight

Height	3.5" (89mm)
Width	17.2" (437mm)
Depth	25.5" (647mm)
Package	11.4" (H) x 26.7" (W) x 34.5" (D)
Weight	Net Weight: 35.5 lbs (16.1 kg) Gross Weight: 69 lbs (31.2 kg)
Available Color	Black


Front Panel

Buttons	Power On/Off System Reset
LEDs	HDD activity Network activity Power status System information (overheat/UID)


Expansion Slots

PCI-Express (PCI-E)	Slot 1: PCI-E 4.0 x8 LP Slot 2: PCI-E 4.0 x16 LP Slot 3: PCI-E 4.0 x16 LP Slot 4: PCI-E 4.0 x16 LP Slot 5: PCI-E 4.0 x16 LP Slot 6: PCI-E 4.0 x8 LP


Drive Bays / Storage

Hot-swap	8x 3.5" hot-swap SATA3 drive bays (8x 3.5" hot-swap SATA drive bays can be converted to 8x SAS drive bays by adding 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0699)
M.2	1 M.2 NVMe
Peripheral Bays	1x slim DVD drive bays (optional)



System Cooling

Fans	3 heavy duty fans with optimal fan speed control


Power Supply

AC 1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Dimension (W x H x L)	76 x 40 x 336 mm
Output Type	Gold Finger
Certification	Titanium Level [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
