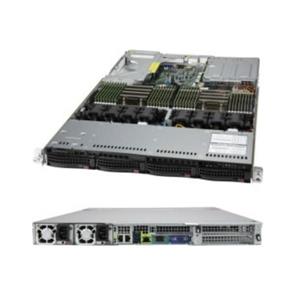

| Chassis | |
| | |
| Form Factor | 1U | |
| Model | CSE-819UTS-R1K02P-A | |
| | |
| Dimensions and Weight | |
| | |
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29" (737mm) | |
| Package | 7.8" (H) 23.66" (W) 37.13" (D) | |
| Weight | Net Weight: 26 lbs (11.8 kg) | |
| Gross Weight: 41 lbs (18.6 kg) | |
| | |
| Front Panel | |
| | |
| Buttons | Power On/Off button | |
| System Reset button | |
| LEDs | Power LED | |
| Hard drive activity LED | |
| 2x Network activity LEDs | |
| System Overheat LED / Fan fail LED / | |
| UID LED | |
| | |
| Drive Bays | |
| | |
| Hot-swap | 4 Hot-swap 3.5" SATA3 drive bays | |
| | |
| Backplane | |
| | |
| HDD Backplane | Supports 4 SATA3 or 4 NVMe or 4 SAS3 HDD | |
| | |
| System Cooling | |
| | |
| Fans | 8 heavy-duty PWM fans with optimal fan speed control | |
| Air Shroud | 2 Air Shroud | |
| | |
| Power Supply | |
| 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W/1000W | |
| Dimension | 73.5 x 40 x 203 mm | |
| (W x H x L) | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | |
| 200-240Vdc / 7 - 5A (for CCC only) | |
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | |
| Max: 83A / Min: 0A (200-240Vdc) | |
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | | |
| | |
| [ Test Report ] | |
| | |
| PC Health Monitoring | |
| | |
| CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT | |
| CPU switching voltage regulator | |
| FAN | Up to 8-fan status tachometer monitoring | |
| Up to eight 4-pin fan headers | |
| Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | |
| Temperature | Monitoring for CPU and chassis environment | |
| CPU Thermal Trip Support | |
| Thermal control for 8x Fan connectors | |
| I²C Temperature Sensing Logic | |
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection | |
| Chassis Intrusion Header | |
| | |
| Operating Environment / Compliance |
| | |
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: | |
| 10°C to 35°C (50°F to 95°F)* | |
| Non-operating Temperature: | |
| -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: | |
| 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: | |
| 5% to 95% (non-condensing) | |
| Note | * Support for operating 35°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details. | |
